CAT Emissions Compliance for Tier 4 Final Engines

In 2022, Caterpillar faced a California Air Resources Board (CARB) enforcement action for failing to disclose auxiliary emissions control devices in engine certifications—a stark reminder that emissions compliance isn’t optional. Today, CAT Tier 4 Final engines are the regulatory standard across the UAE and globally, yet many operators don’t fully understand what these systems do or why they matter for operational costs and regulatory standing. This guide explains Caterpillar’s Tier 4 Final emissions technology, the core aftertreatment systems that make compliance possible, and the operational requirements that keep your equipment legal and efficient in UAE oilfield operations.

The Evolution of Emissions Standards—Why Tier 4 Exists

Historical Progression (1996–2006)

The journey to CAT emissions technology began with Tier 1 standards in 1996, establishing baseline emissions requirements for nonroad diesel engines. Between 1996 and 2006, progressive regulations through Tier 1, Tier 2, and Tier 3 achieved approximately 65% particulate matter (PM) reduction and 60% nitrogen oxides (NOx) reduction. These early standards, driven by the Clean Air Act and growing industrial pollution concerns, set the foundation for cleaner diesel technology.

Tier 4 Interim: A Turning Point (2011–2013)

Tier 4 Interim regulations marked a significant advancement in emissions control. Phased in starting 2011 for 130-560 kW engines and 2012 for 56-130 kW engines, these standards demanded 90% PM reduction and 50% NOx reduction compared to Tier 3 levels. This phase also introduced cleaner fuel requirements, setting the stage for CAT Stage IV compliance that would follow.

Tier 4 Final: Near-Zero Emissions (2014+)

Fully implemented by 2014-2015, CAT Tier 4 Final engines apply to 19-560 kW nonroad diesel engines and require an additional 80% NOx reduction versus Tier 4 Interim standards. The result is near-zero PM and NOx emissions, with global alignment across Stage IV (EU), CARB (California), and EPA (US Federal) standards. For UAE operators, understanding these requirements is essential when choosing the right CAT spare parts for emissions-compliant equipment.

The Four Pillars of CAT Tier 4 Final Technology

Diesel Oxidation Catalyst (DOC)

The DOC serves as the first line of defense in CAT emissions technology, burning carbon monoxide (CO) and unburned hydrocarbons (HC) at lower exhaust temperatures. This compact component, integrated into Caterpillar’s Clean Emissions Module (CEM), acts as a pre-treatment stage before particulate matter enters the diesel particulate filter.

Diesel Particulate Filter (DPF)

The DPF represents core technology in CAT Tier 4 Final engines, trapping soot particles from the exhaust stream. Passive regeneration uses exhaust heat to burn trapped particulates, while active regeneration injects fuel into the exhaust to raise temperatures for cleaning. Genuine CAT Soot Filters (part numbers 8N-2555, 155-3634) feature removable center section designs allowing ash service without full unit replacement. Typical maintenance intervals extend beyond 30,000 operating hours, though this varies by application and proper filtration maintenance using components like the CAT Oil Filter 1R-0755.

Selective Catalytic Reduction (SCR)

SCR technology reduces NOx in the exhaust stream by injecting urea-based Diesel Exhaust Fluid (DEF) onto a copper zeolite-based catalyst. DEF consumption typically ranges from 2-3% of diesel fuel consumption, meaning 100,000 liters of diesel requires approximately 2,000-3,000 liters of DEF. This consumption rate makes proper fluid management essential for UAE operations, requiring ISO 22241-1 specification compliance to maintain CAT Stage IV compliance.

Cooled Exhaust Gas Recirculation (EGR)

EGR diverts exhaust gases back into the combustion chamber, reducing in-cylinder temperatures and lowering NOx formation. Combined with SCR, this technology optimizes both emissions and fuel efficiency without requiring additional fluids. For operators familiar with CAT C15 ACERT engines, the advanced ADEM control systems in Tier 4 engines represent the evolution of emissions management technology.

Fuel and Lubricant Requirements—The Hidden Operational Costs

Ultra Low Sulfur Diesel (ULSD) Mandate

CAT Tier 4 Final engines require ULSD with ≤15 parts per million (ppm) sulfur content. This specification protects SCR catalysts from poisoning and improves DPF regeneration efficiency. In the UAE and GCC region, verified fuel suppliers like ADNOC provide ULSD, though it typically commands a 5-10% premium over standard diesel. Proper fuel filtration using CAT Filter 1R-0726 and 1R-0750 becomes critical with ULSD to maintain the CAT emissions technology integrity.

Diesel Exhaust Fluid (DEF) – New Operational Requirement

DEF must meet ISO 22241-1 specifications, containing 32.5% urea in demineralized water. With a freezing point of -11°C, storage in controlled facilities is important. The operational calculation is straightforward: 100,000 liters of diesel consumption equals approximately 2,000-3,000 liters of DEF. Integrated DEF tanks are sized for extended refill intervals, typically requiring filling every 3-4 diesel refuelings.

Low Sulfated Ash Oil Requirement

Protecting the DPF from ash accumulation requires Mid-SAPS or Low-SAPS lubricants (ISO VG grades 15W-40, 10W-30). This specification extends DPF service life by 40-60% compared to high-ash oils. Proper CAT Oil Filter 1R-0756 and 1R-0762 maintenance with compliant lubricants is essential, as detailed in our guide on extending equipment life through proper lubrication.

B20 Biodiesel Compatibility

CAT Tier 4 Final engines support up to 20% biodiesel blending, supporting sustainability goals while maintaining performance with no engine derating required—a feature aligned with environmental initiatives in the oil and gas sector.

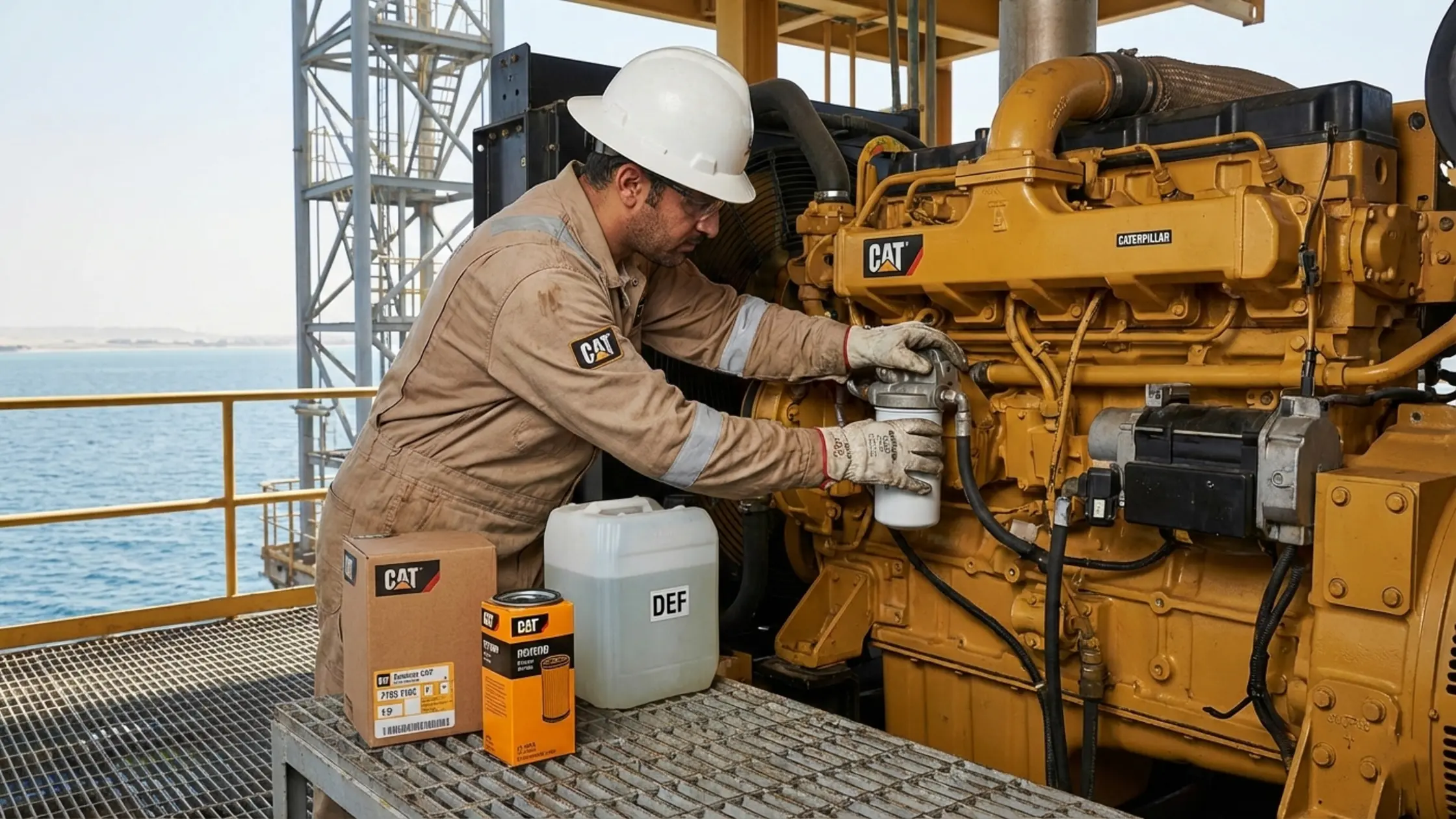

Maintenance Intervals and Servicing Protocols

Preventative Maintenance Schedule

Standard oil and filter changes occur at 500-1,000-hour intervals. Fuel filter service using components like CAT Fuel Filter 1R-1808 should occur every 250-500 hours—ULSD fuel quality makes this critical. Water separator inspection (CAT 1R-0749 or 326-1643) at every service is essential in humid coastal UAE environments. DPF ash service intervals range from 5,000-10,000 hours, depending on application, with manual ash cleaning extending DPF life versus pressure regeneration alone. Operators should reference the CAT engine spare parts checklist to maintain proper inventory.

Monitoring and Diagnostics

Electronic control unit (ECU) monitoring provides real-time emissions system status. Malfunction indicator lamp (MIL) alerts notify operators of system issues, while DEF level monitoring through integrated sensors prevents tank depletion. Temperature sensors monitor DPF regeneration progress. Modern monitoring technologies for emissions compliance enable predictive maintenance strategies.

Common Maintenance Mistakes in UAE Operations

Using standard diesel instead of ULSD damages SCR catalysts. Neglecting fuel water separators in humid coastal environments leads to premature filter failure. Overfilling DEF tanks can damage pump systems. Delaying DPF ash service leads to pressure differential failure. Proper fastening protocols secure aftertreatment system connections, preventing costly leaks. The UAE’s demanding environment requires particular attention to filter replacement intervals.

Regulatory Landscape—Operating Legally in MENA

EPA Tier 4 Final (US Standard)

Federal EPA standards regulate all 19-560 kW nonroad engines, applying to equipment imported to the USA, Canada, and Mexico. Certification requires an Executive Order (EO) from EPA or CARB.

CARB Stage IV (California)

California maintains stricter standards in some emission categories, requiring disclosure of all auxiliary emission control devices (AECDs). The 2022 Caterpillar CARB settlement highlighted the importance of transparency in emissions control systems, resulting in enforcement penalties for non-disclosure.

EU Stage IV Equivalence

European Stage IV standards maintain similar NOx and PM reduction requirements with slightly different certification timelines, ensuring global equipment compatibility.

UAE / GCC Regional Compliance

The UAE has no separate emirate-level emissions standard; equipment follows international EPA/CARB standards. Import documentation requires emissions certification. Operational compliance depends on ULSD fuel availability from major suppliers like ADNOC and local distributors. Understanding Caterpillar’s Middle East distribution infrastructure helps ensure compliant parts availability.

Operational Impact & ROI Analysis

Initial Capital Costs

CAT Tier 4 Final engines command an 8-12% premium versus Tier 3 engines. Aftertreatment systems (DOC/DPF/SCR) add $3,000-$8,000 per engine to the initial investment.

Ongoing Operational Costs

ULSD fuel carries a 5-10% premium. DEF consumption adds 2-3% to fuel costs. Maintenance intervals remain similar to Tier 3, but specialized filtration parts like CAT Hydraulic Filter 1R-0716, 246-5009, and 513-4490 are required.

Benefits That Offset Costs

Near-zero compliance risk eliminates potential penalties. Improved fuel economy of 15-20% versus Tier 3 engines reduces operating costs. Reduced wear on internal engine components extends service life. Enhanced equipment resale value means Tier 4 equipment commands market premiums. The genuine parts versus aftermarket analysis demonstrates that quality components preserve this value.

Long-Term Perspective

Five-year total cost of ownership significantly favors Tier 4 technology. Environmental reputation benefits matter increasingly in ESG-conscious contract awards. When choosing genuine CAT spare parts, operators ensure emissions compliance and integrity that protects long-term investments. The pricing transparency available for Tier 4 components helps operators budget accurately.

Troubleshooting & Common Issues

DEF Quality Problems

Symptoms include rough idle, reduced power, and check engine lights. The root cause is contaminated or out-of-spec DEF. Solution: Use only certified DEF suppliers meeting ISO 22241-1 standards. Verifying genuine CAT components and fluids prevents these issues.

DPF Clogging

Black smoke, power loss, and engine derate indicate DPF issues. Causes include incorrect oil specifications, short-interval operation, and poor fuel quality. Prevention requires maintaining proper low-SAPS oil specifications and extended operating cycles to generate regeneration heat. Proper filter selection prevents many emissions system failures.

SCR Catalyst Poisoning

High NOx emissions despite DEF injection indicate catalyst poisoning, typically caused by high-sulfur fuel use. Prevention requires strict ULSD sourcing and proper primary fuel filtration (CAT 326-1641).

Conclusion: Tier 4 Compliance as Competitive Advantage

CAT Tier 4 Final engines and CAT Stage IV compliance aren’t burdens—they’re legal requirements and financial necessities in modern UAE oilfield operations. By understanding the four core technologies (DOC, DPF, SCR, cooled EGR), maintaining strict fuel specifications (ULSD), and committing to preventative maintenance with genuine components like CAT Air Filters and filter assemblies, UAE operators maximize equipment uptime, minimize compliance risk, and achieve operational efficiency that Tier 3 engines cannot match.

The investment in proper CAT emissions technology maintenance pays dividends through reduced fuel consumption, extended component life, and elimination of regulatory penalties. As environmental standards continue tightening globally, operators with compliant Tier 4 fleets gain competitive advantages in contract bidding and operational efficiency. Understanding the complete filtration ecosystem for your CAT equipment ensures long-term compliance and performance.

Ready to ensure your CAT equipment meets Tier 4 standards? Explore our comprehensive catalog of genuine CAT emission-compliant components, or review the 5 essential spare parts every UAE oilfield operator should stock. For equipment-specific guidance, learn how UAE climate conditions affect maintenance intervals. Understanding the true cost of equipment downtime makes Tier 4 compliance an obvious operational priority.
