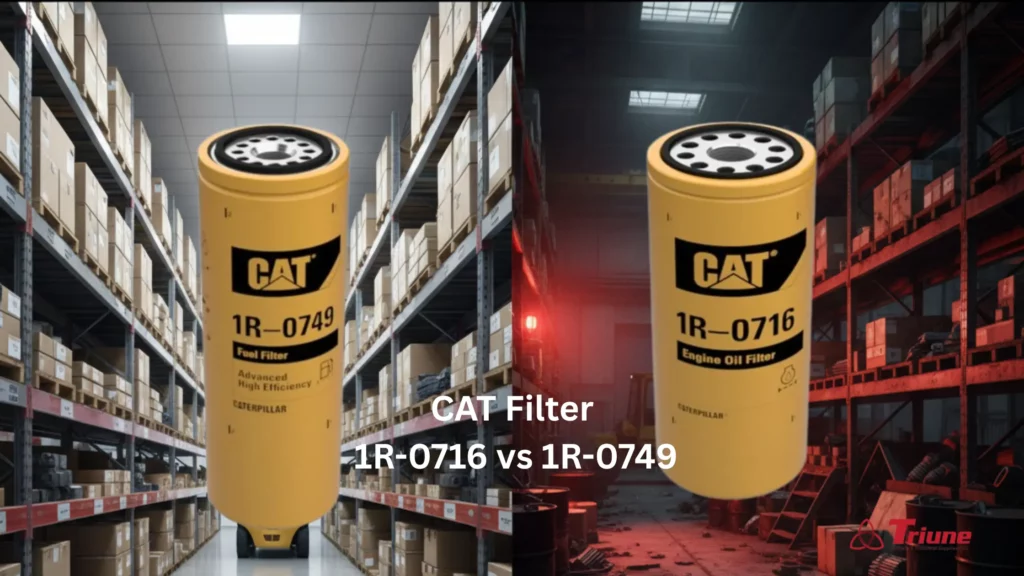

CAT Filter 1R-0716 vs 1R-0749: Complete Comparison Guide

The Critical Importance of Proper Filter Selection

Equipment managers and fleet operators face significant challenges when selecting the right filters for heavy machinery. While the difference between an engine oil filter and a fuel filter might seem minor, installing the wrong filter type can lead to catastrophic engine failure, voided warranties, and costly downtime that can range from hundreds to thousands of dollars per hour depending on equipment type and associated costs.

This comprehensive guide examines the technical differences between CAT’s 1R-0716 engine oil filter and 1R-0749 fuel-water separator, providing application-specific selection criteria to help equipment managers, fleet operators, and maintenance technicians make informed decisions that protect their investments and maintain optimal equipment performance.

What You’ll Learn in This Guide

• Critical technical specifications and dimensional differences between these two essential filters
• Application-specific use cases and proper installation requirements
• Performance metrics, efficiency ratings, and filtration capabilities
• Maintenance intervals based on oil sump configuration and operating conditions
• Cost-benefit analysis and long-term ROI considerations
• Common selection mistakes that lead to equipment damage

Understanding CAT Filter Types and Classifications

The CAT Filter Efficiency Hierarchy

Caterpillar manufactures filters across three distinct efficiency levels, each engineered for specific equipment generations and tolerance requirements:

• Standard Efficiency: Designed for older machine models with more forgiving component tolerances
• Advanced High Efficiency: Provides superior contaminant capture for modern engines with tighter clearances
• Ultra High Efficiency: Maximum protection for the latest generation of high-pressure fuel injection and precision-engineered components

Critical Differences Between Filter Applications

Engine Oil Filters: These filters protect lubrication systems from particles, metal debris, and combustion byproducts that can cause premature wear on engine components. They operate within the engine’s lubrication circuit, continuously cleaning oil as it circulates through bearings, camshafts, and other critical moving parts.

Fuel Filters and Fuel-Water Separators: These specialized filters remove contaminants, water, rust particles, and microbial growth from diesel fuel before it reaches sensitive high-pressure injection systems. Modern common rail fuel injection systems operate at pressures exceeding 30,000 PSI, making advanced fuel filtration absolutely essential.

Why Proper Filter Classification Matters

While both filter types remove contaminants, their media composition, pressure ratings, filtration efficiency, and chemical compatibility differ significantly. Using an oil filter in a fuel system—or vice versa—compromises protection and can lead to premature component failure, expensive repairs, and extended downtime.

For comprehensive information on other CAT filtration components, explore our guides on CAT air filters and specialized CAT soot filters for exhaust system protection.

CAT 1R-0716: Complete Technical Profile

Primary Classification and Application

The 1R-0716 is classified as a Standard Efficiency Secondary Engine Oil Filter, specifically designed for older CAT machine models manufactured with more forgiving component tolerances. This filter provides reliable lubrication system protection for equipment where advanced efficiency filtration is not yet required.

Detailed Technical Specifications

Specification	Value
Overall Height	307.0 mm (12.09 inches)
Outer Diameter	130.2 mm (5.125 inches)
Thread Size	1 1/2 – 16 – 2B
Media Type	Cellulose
Installation Type	Spin-On
Efficiency Rating	Standard Efficiency
Seal Type	Radial Seal
Primary Function	Engine lubrication system protection
Filtration Target	Metal particles, carbon deposits, combustion byproducts

Compatible CAT Engine Models

The 1R-0716 filter is engineered for compatibility with numerous CAT diesel engines, including: 3176, 3176B, 3176C, 3196, 3304, 3306, 3306B, 3406, 3406B, 3406C, 3408, 3408B, 3412, 3412C, 3412E, C-9, C-12, C-13, C-15, C-16, C-18, C27, and C32 engines.

Compatible Heavy Equipment Applications

• Motor Graders: 12H, 140H, 143H, 160H, 16G, 16H
• Hydraulic Excavators: 352F, 390F L
• Wheel Loaders: 966H, 966M, 972M, 980M, 990K
• Articulated Dump Trucks: 725, 730, 735, 740, 745, 769D, 770G, 773D, 777E
• Soil Compactors: 815F, 816F, 825H, 826H, 836G, 836H

Advanced Efficiency Upgrade Path

Equipment operators seeking enhanced filtration performance can upgrade to the 1R-1808 advanced high efficiency engine oil filter, which offers improved contaminant capture without requiring shorter maintenance intervals. This upgrade is particularly beneficial for extending component life in older equipment operating in demanding conditions.

For additional oil filter options, consider the 1R-0755 and 1R-0756 oil filters for alternative CAT equipment applications.

CAT 1R-0749: Complete Technical Profile

Primary Classification and Application

The 1R-0749 is classified as an Advanced High Efficiency Secondary Fuel Filter and Fuel-Water Separator, specifically engineered to protect modern diesel fuel injection systems from contamination. This filter provides critical protection for high-pressure common rail injection systems found in contemporary CAT equipment.

Detailed Technical Specifications

Specification	Value
Overall Height	266.7 mm (10.5 inches)
Outer Diameter	93.5 mm (3.68 inches)
Thread Size	1-14 UN
Media Type	Advanced Cellulose
Installation Type	Spin-On
Efficiency Rating	Advanced High Efficiency
Micron Rating (SAE J1985)	3-5 microns
Filtration Efficiency	98.7% at rated micron level
Application Type	Secondary Fuel Filtration / Water Separation
Maximum Differential Pressure	100 PSI (689 kPa)

Compatible Engine Models and Applications

The 1R-0749 is designed for modern CAT diesel engines including: 3406, C9, C13, C15, C18, 349F, PM200, and other contemporary engines equipped with high-pressure fuel injection systems requiring advanced fuel filtration protection.

Superior Performance in Independent Testing

Independent comparative testing conducted by Caterpillar demonstrated that the 1R-0749 outperformed competitive filters from major manufacturers including Donaldson, Baldwin, Fleetguard, and Wix. The CAT filter maintained superior beta ratios (measuring filtration efficiency) throughout extended test durations and provided significantly longer protection before injector leakage rates reached failure thresholds—running approximately 45% longer than competing products.

Cross-Reference Compatibility

The 1R-0749 can replace the following aftermarket filter part numbers: Fleetguard FF5319, Donaldson P551311, Baldwin BF7587, WIX 33674, and Fram P8335. However, for optimal performance and warranty protection, genuine CAT filters are strongly recommended.

For related fuel system components, explore our inventory of 1R-0726 fuel filters, 1R-0750 fuel filters, 326-1641 primary fuel filters, and 326-1643 fuel-water separators.

Head-to-Head Technical Comparison

Comprehensive Specification Comparison Table

Specification	1R-0716 (Engine Oil Filter)	1R-0749 (Fuel Filter)
Overall Height	307.0 mm (12.09″)	266.7 mm (10.5″)
Outer Diameter	130.2 mm (5.125″)	93.5 mm (3.68″)
Thread Size	1 1/2 – 16 – 2B	1-14 UN
Media Type	Cellulose	Advanced Cellulose
Efficiency Rating	Standard	Advanced High
Micron Rating	Standard (coarser)	3-5 microns
Primary Function	Engine lubrication protection	Fuel contamination removal / water separation
Operating System	Engine oil circuit	Diesel fuel system
Target Contaminants	Metal particles, carbon deposits, soot	Water, rust, microbial growth, fine particles

Functional Performance Differences

1R-0716 Engine Oil Filter Characteristics:

• Removes metal wear particles, carbon deposits, and combustion byproducts from engine oil
• Operates at typical oil system pressures of 60-100 PSI (up to 200 PSI during cold starts)
• Larger filter capacity designed for extended service intervals (250-1,000 hours depending on sump configuration)
• Engineered with more forgiving tolerances suitable for older equipment designs
• Compatible with shallow, standard, and deep oil sump configurations

1R-0749 Fuel Filter Characteristics:

• Removes water, rust particles, microbial contamination, and ultra-fine particulates from diesel fuel
• Operates at fuel system pressures of 50-100 PSI
• Advanced efficiency media captures 98.7% of particles at rated micron level
• Critical protection for high-pressure fuel injection systems operating up to 30,000 PSI
• Protects sensitive injector components with extremely tight manufacturing tolerances
• Integrated water separation capability prevents fuel system corrosion

Media Construction and Chemical Compatibility

While both filters utilize cellulose-based media, the 1R-0749 employs a tighter weave pattern and specialized chemical treatment designed specifically for hydrocarbon compatibility, water rejection, and resistance to microbial growth. The 1R-0716 uses media optimized for capturing solid particles suspended in engine oil, with chemical resistance to oil additives and oxidation byproducts.

For additional filtration system components, consider 1R-0762 lube filters, 246-5009 hydraulic elements, and 513-4490 hydraulic filters for comprehensive equipment protection.

Application-Specific Selection Criteria

When to Select the 1R-0716 Engine Oil Filter

The 1R-0716 filter is the appropriate choice when:

• Operating older generation CAT equipment models (typically pre-2005) with 3176, 3306, 3406, or 3412 series engines
• Standard efficiency lubrication protection meets the OEM specifications for your application
• Equipment operates in moderate duty cycles without extreme contamination exposure
• Cost-efficiency is prioritized for fleet operations managing older machinery
• The equipment is configured with shallow, standard, or deep oil sump systems
• Replacement of existing standard efficiency oil filters during routine maintenance

When to Select the 1R-0749 Fuel Filter

The 1R-0749 filter is required when:

• Operating modern CAT diesel engines (C9, C13, C15, C18 series and newer)
• Equipment is equipped with high-pressure common rail fuel injection systems
• Working in environments with contaminated fuel supplies or questionable fuel quality
• Maximum injector protection is essential due to high component replacement costs
• Equipment is subjected to extreme duty cycles or harsh operating conditions
• Advanced efficiency fuel filtration is specified in OEM maintenance schedules
• Water contamination in fuel supplies is a recurring concern

Critical Safety Warning

NEVER interchange these filters. Installing the 1R-0716 (engine oil filter) in a fuel system or the 1R-0749 (fuel filter) in an engine oil system will result in:

• Inadequate filtration for the specific system requirements
• Rapid system contamination and component degradation
• Catastrophic component failure requiring extensive repairs
• Voided equipment warranties due to improper maintenance
• Significant safety hazards from equipment malfunction

Maintenance Intervals and Best Practices

1R-0716 Engine Oil Filter Maintenance Schedule

Proper maintenance intervals for the 1R-0716 oil filter vary based on oil sump configuration:

• Shallow Oil Sump Configuration: Change filter every 250 service hours
• Standard Oil Sump Configuration: Change filter every 500 service hours
• Deep Oil Sump Configuration: Change filter every 1,000 service hours
• Time-Based Interval: Change annually if hour-based interval is not reached
• Oil Analysis Programs: Utilize S•O•S (Scheduled Oil Sampling) services to optimize change intervals based on actual contamination levels

1R-0749 Fuel Filter Maintenance Schedule

Recommended maintenance intervals for the 1R-0749 fuel filter:

• Primary Fuel Filter: Clean, inspect, and replace every 1,000 service hours
• Secondary Fuel Filter (1R-0749): Replace every 1,000 service hours
• Contaminated Environments: Inspect and service more frequently (every 500 hours) when fuel quality is questionable
• Water Separator Function: Drain water collection bowl whenever water is visible or at every 250-hour inspection

Installation and Maintenance Best Practices

Follow these critical procedures during filter service:

1. Verification: Always verify part numbers against equipment serial numbers before installation
2. Genuine Parts: Use genuine CAT filters to maintain warranty coverage and ensure proper fitment
3. Pre-Filling: Pre-fill oil filters with clean engine oil, but NEVER pre-fill fuel filters (risk of introducing contamination)
4. Gasket Replacement: Always inspect and replace gaskets and O-rings during every filter change—never reuse old seals
5. Installation Torque: Hand-tighten spin-on filters until gasket contacts, then rotate an additional 3/4 turn—do not overtighten
6. Leak Inspection: Check for leaks after installation and initial equipment startup
7. Documentation: Maintain detailed service records including hour meter readings, filter part numbers, and any observations

For comprehensive equipment maintenance, also consider regular replacement of 248-5513 filter assemblies and 115-3634 engine components according to OEM specifications.

Cost Analysis and ROI Considerations

Comparative Pricing Overview

Typical market pricing for genuine CAT filters:

Filter Part Number	Genuine CAT Price Range	Aftermarket Price Range
1R-0716 (Engine Oil Filter)	$19-35 USD	$8-15 USD
1R-0749 (Fuel Filter)	$25-45 USD	$12-20 USD
Complete Filter Kit	$139.90 USD	Varies by components

Note: Prices vary based on supplier, order quantity, and geographic location. Genuine CAT filters include warranty protection and guaranteed OEM specifications.

Total Cost of Ownership Analysis

Evaluating filter costs requires consideration of potential failure expenses:

• Unplanned Downtime: Equipment downtime costs range from hundreds to thousands of dollars per hour depending on equipment type, associated resources, and project impacts
• Injector Replacement: Fuel injector failure due to contamination: $2,000-5,000 per injector (modern common rail injectors)
• Engine Overhaul: Premature engine wear from inadequate filtration: $15,000-50,000+ depending on engine size
• Fuel Efficiency Losses: Contaminated fuel systems reduce efficiency by 2-5%, increasing operational costs over time
• Component Replacement: Accelerated wear on bearings, camshafts, and other lubricated components

Return on Investment for Genuine CAT Filters

While genuine CAT filters typically cost 20-40% more than aftermarket alternatives, they deliver measurable benefits:

• Superior filtration efficiency extends component life by up to 45% compared to competitive products
• Maintained warranty coverage protects against catastrophic failure costs
• Consistent quality control eliminates variability in filtration performance
• Proper fitment reduces installation time and eliminates leak-related callbacks
• OEM-specified materials ensure compatibility with CAT fluids and operating conditions

The incremental cost difference between genuine and aftermarket filters is typically recovered within a single service interval through improved reliability and extended component life.

Common Selection Mistakes to Avoid

Top Five Critical Filter Selection Errors

1. Incorrect Filter Type: Installing an engine oil filter in a fuel system (or vice versa)—the most catastrophic error leading to immediate contamination and component damage
2. Wrong Filter Orientation: Ignoring directional flow indicators marked on filter housings, causing reverse flow and filtration bypass
3. Gasket Installation Issues: Reusing old gaskets, double-gasketing (old gasket remains on housing), or failing to lubricate gaskets before installation
4. Overtightening Filters: Excessive installation torque damages filter threads, crushes gaskets, and can cause catastrophic leaks during operation
5. Skipping Compatibility Verification: Not confirming part numbers against specific engine serial numbers and equipment configuration codes

Pre-Installation Verification Checklist

Complete this checklist before every filter installation:

• ☑ Confirm engine model number and serial number from equipment data plate
• ☑ Verify filter application (engine oil vs. fuel system vs. hydraulic system)
• ☑ Check efficiency rating requirements (Standard vs. Advanced vs. Ultra High)
• ☑ Inspect packaging for genuine CAT branding and proper part number labeling
• ☑ Review equipment Operation & Maintenance Manual for specific filter specifications
• ☑ Verify thread size and gasket diameter match existing filter mounting points
• ☑ Confirm filter height clearance for installation location
• ☑ Inspect filter housing for damage, corrosion, or debris before installation

Recognizing Counterfeit and Substandard Filters

Protect your equipment by identifying genuine CAT filters:

• Verify holographic security labels and authentic CAT packaging
• Compare filter weight—counterfeit filters often use inferior media with lower density
• Inspect paint quality, logo clarity, and labeling accuracy
• Purchase only from authorized CAT dealers or verified suppliers
• Be suspicious of prices significantly below market rates for genuine parts

Conclusion and Recommendations

Key Takeaways for Equipment Managers

The CAT 1R-0716 and 1R-0749 serve distinctly different and non-interchangeable purposes in CAT equipment maintenance:

• The 1R-0716 provides standard efficiency engine oil filtration for older equipment models with more forgiving component tolerances
• The 1R-0749 delivers advanced fuel system protection specifically for modern diesel engines equipped with high-pressure injection systems
• These filters are NOT interchangeable—installing the wrong filter type will cause immediate system contamination and expensive component damage
• Maintenance intervals vary significantly based on equipment configuration, operating conditions, and oil/fuel system design
• Genuine CAT filters provide superior protection, warranty coverage, and measurable ROI despite higher initial cost

Final Recommendations for Fleet Operations

Implement these best practices to maximize equipment reliability and minimize total cost of ownership:

1. Always match filter type to system application—never substitute oil filters for fuel filters or vice versa
2. Prioritize genuine CAT filters for critical equipment and high-utilization assets
3. Follow manufacturer-specified maintenance intervals based on oil sump configuration and operating environment
4. Consider advanced efficiency upgrades such as the 1R-1808 engine oil filter for enhanced protection in older equipment
5. Invest in oil analysis programs (S•O•S) to optimize change intervals and identify contamination trends early
6. Maintain comprehensive service records documenting all filter changes, hour meter readings, and observed conditions
7. Train maintenance personnel on proper filter identification, installation procedures, and torque specifications

Next Steps for Equipment Operators

To ensure optimal equipment performance and protection:

• Consult your equipment’s Operation & Maintenance Manual for model-specific filter specifications
• Verify current filter part numbers installed on your equipment match OEM recommendations
• Establish a preventive maintenance schedule using genuine CAT filters appropriate for each system
• Consider upgrading to advanced efficiency filters where applicable for extended component life
• Implement oil analysis testing to monitor contamination trends and optimize service intervals

For comprehensive equipment protection, browse our complete inventory of genuine CAT filtration components including specialized applications like exhaust system protection with CAT soot filters and our full range of CAT air filters for engine intake systems.

Contact Us for Technical Support

Our filtration specialists are available to assist with filter selection, cross-reference verification, and technical questions specific to your equipment configuration. Proper filter selection is a critical investment in equipment reliability, operational efficiency, and long-term asset protection.
