Oilfield Rescue Equipment Guide

Rescue planning on a UAE oilfield is a legal requirement before work begins, not a contingency prepared after an incident occurs. OSHAD-SF Technical Guideline 11 requires a documented rescue plan as a condition of every working at height (WAH) permit. ADNOC HSE Management System requires designated rescue equipment and a trained standby rescuer to be present for every confined space entry operation. The question is not whether rescue equipment is needed — it is whether the equipment staged on site is the right equipment for the specific rescue scenario the work creates. Specifying the correct confined space rescue tripod UAE standards require is just the beginning.

The most common rescue planning failure on UAE oilfield operations is that rescue equipment exists somewhere on site, but it is not matched to the specific hazard zone. A tripod positioned 200 metres from the actual entry point, a rescue harness stored in the HSE office rather than staged at the work location, or an evacuation device purchased but never included in a practical drill — these are not compliant rescue programmes. The equipment must be staged, accessible, and appropriate for the rescue scenario before the permit is issued and work commences.

This guide covers the three primary oilfield rescue scenarios: confined space retrieval, height rescue from a suspended position, and high-rise or offshore evacuation. It details the equipment required for each, explores suspension trauma and why speed of rescue matters, and explains how to build a compliant rescue equipment inventory for a UAE rig operation.

For broader safety requirements, see Triune’s Oilfield Height & Hand Safety Complete Guide.

The Three Rescue Scenarios Every UAE Oilfield Operation Must Plan For

Oilfield rescue planning is not generic. It must address the specific rescue scenarios created by the work being performed. Generic rescue plans fail because incidents do not conform to standard assumptions. Three scenarios dominate UAE oilfield operations:

Confined space retrieval — a worker becomes incapacitated inside a vessel, tank, pit, or enclosed structure. Non-entry retrieval (retrieval without a rescuer entering the space) is the required first approach per ADNOC confined space entry procedures. Requires: tripod anchor system, block and winch, retrieval line, rescue harness on the casualty.

Suspended worker rescue from height — a worker has arrested a fall and is suspended in their harness on a rig structure, derrick, or elevated platform. Suspension trauma risk makes speed of rescue critical. Requires: access to the casualty at height, lowering/retrieval capability, rescue harness, fall arrest blocks.

High-rise or offshore evacuation — a worker is trapped at height on a rig mast, offshore platform, or elevated structure where conventional rescue ladder access is unavailable or too slow. Requires: self-contained controlled-descent evacuation device operable by the individual without external rescue team assistance.

For each scenario, the equipment for each scenario is different. A tripod kit does not solve a high-rise evacuation. A SkySaver device does not solve a confined space retrieval. Rescue equipment must be matched to the rescue scenario — not purchased generically.

• Read more on tripod systems
• Read more on fall arrest blocks
• Read more on SkySaver evacuation systems

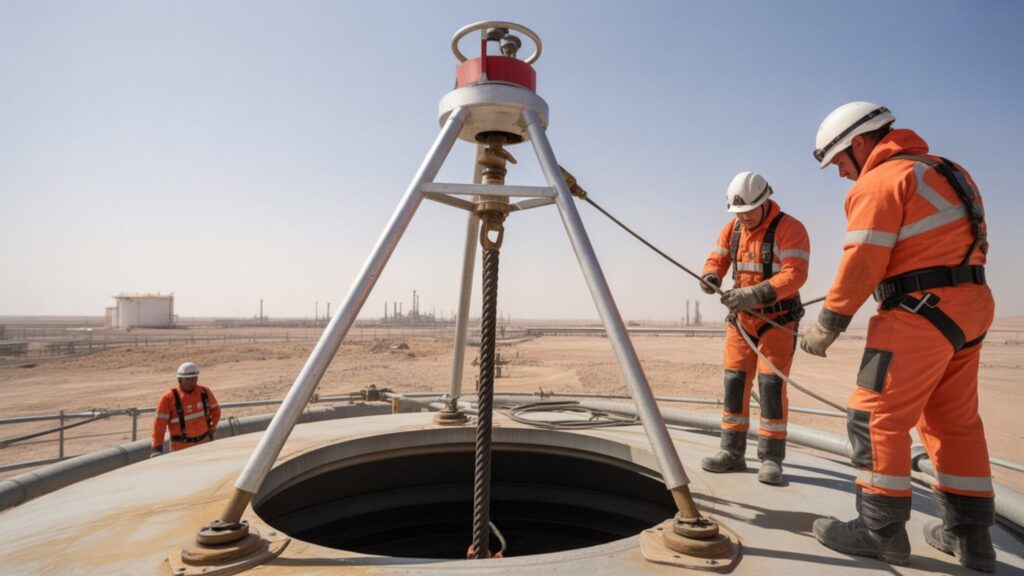

Confined space rescue tripod UAE requirements — Tripod, Winch, and Retrieval Systems

Confined space entry on oilfields — vessels, tanks, sumps, wellbore cellars, cable pits — is one of the highest-fatality work categories globally. The majority of confined space fatalities involve would-be rescuers who enter without proper equipment to retrieve a colleague. Non-entry retrieval is the required first approach — and it requires a properly rated tripod anchor system positioned over the entry point before work begins.

Tripod Systems — Selection and Setup Requirements

A rescue tripod is a portable anchor device, and its specifications are governed by EN 795. Its rated capacity and stability immediately dictate whether a retrieval operation will succeed or fail. Selection criteria include:

• Rated working load capacity: It must exceed the weight of the heaviest potential casualty plus the retrieval line and hardware combined.
• Leg spread and height: It must position the anchor point directly above the confined space entry point with adequate clearance for vertical retrieval, so the casualty does not snag on the lip of the opening.
• Stability under dynamic retrieval load: A struggling or deadweight casualty creates dynamic loads beyond static weight. The tripod must be rated for dynamic use, not just static hanging load.
• Material: Aluminium alloy for portable, rig-deployable tripods; corrosion-resistant finish for offshore and humid environments.

For confined space entry operations on UAE oilfield sites — vessel entry, tank cleaning, sump maintenance — the Tripod Kit from Fall@rrest Global provides a portable, rated anchor system designed for deployment directly over a confined space entry point. The kit includes the tripod frame, rated connecting hardware, and is designed for compatibility with block-and-winch retrieval systems — meeting the non-entry retrieval requirement of ADNOC confined space entry procedures before a single worker descends.

Block and Winch Systems — Retrieval at Depth

Where a casualty is incapacitated at depth — below the entry point, on a lower level of a vessel, or at the bottom of a deep pit — a manual retrieval line alone is insufficient. A block-and-winch system provides the mechanical advantage and controlled-speed retrieval required to bring a deadweight casualty to the surface without exhausting the rescue team or losing control of the retrieval speed.

For retrieval from deeper confined spaces — vessel internals, deep sumps, or multi-level structures — the 30m Block with Winch from Fall@rrest Global provides 30 metres of retrieval line with a geared winch mechanism, giving the rescue team mechanical advantage for deadweight casualty retrieval without manual hauling. The 30m line length covers the depth range of the majority of confined space entry scenarios encountered on UAE oilfield operations.

Height Rescue — Suspended Worker and Suspension Trauma

Suspension Trauma — Why Minutes Matter

When a worker is suspended in a fall arrest harness after arresting a fall, the leg straps restrict venous return from the lower limbs. Blood pools in the legs, reducing cardiac output and cerebral perfusion. This condition is also called orthostatic intolerance or harness hang syndrome.

The result — dizziness, loss of consciousness, and in the absence of rescue, death — can develop within minutes of suspension. The exact timeline varies between individuals and conditions; both IOSH and HSE published guidance emphasize that rescue must be initiated within minutes of suspension trauma. There is no single universal safe time limit.

The implication for rescue planning: a suspended worker is a time-critical casualty from the moment of arrest. The rescue plan must be executable in minutes — not the time it takes to locate equipment, brief a team, and reach the casualty. Instruct workers to pump their legs if conscious while suspended — this reduces venous pooling and extends the time window for rescue.

Fall Arrest Blocks for Rescue Access and Lowering

Rescuing a suspended worker requires both access to the casualty at height and controlled lowering to a safe recovery point below. Wire rope fall arrest blocks are used in rescue configurations because wire rope provides the rated capacity and durability for repeated use under rescue loads — unlike standard webbing lanyards.

For height rescue operations on rig structures and elevated platforms, the Wire Fall Arrest Blocks from Fall@rrest Global provide the rated wire rope line capacity and braking mechanism required for both worker protection during rescue access and controlled casualty lowering — configurations that a standard webbing fall arrest lanyard is not designed or rated to perform.

The Rescue Harness — Why It Is Not the Same as a Work Harness

A rescue harness carries additional attachment points and load-distribution webbing specifically for the forces and geometry of casualty retrieval — not just the single dorsal arrest point of a standard work harness.

The rescue-rated sternal and shoulder attachment points allow the rescuer to clip directly to the casualty and control their body position during retrieval. A rescue harness must carry EN 361 certification as a minimum; rescue-specific certifications cover the additional attachment points. On UAE oilfield operations, the rescue harness must be worn by the designated standby rescuer — staged at the work location, not stored in a vehicle.

The Rescue Harness from Fall@rrest Global provides the multi-point attachment configuration required for both rescuer protection during access and direct connection to a casualty during retrieval — distinct from a standard EN 361 work harness in both its attachment geometry and its rescue-load rated webbing distribution. For ADNOC confined space entry operations requiring a designated trained standby rescuer, this is the correct harness specification for that role — not a repurposed work harness.

Read detailed block selection guidance for fall arrest blocks

High-Rise and Offshore Evacuation — When Conventional Rescue Cannot Reach in Time

A worker is trapped at height — on a rig mast above the monkey board, on an offshore platform structure, or in an elevated position where conventional rescue ladder access would take longer than the emergency situation allows. Fire, structural failure, or a medical emergency at height can all create this scenario. In these cases, self-contained controlled-descent evacuation provides a life-safety option that does not depend on a rescue team reaching the casualty.

A controlled-descent evacuation device is entirely functional as a self-rescue tool — operable by the individual without external assistance. It provides a controlled descent rate — typically governed by a centrifugal braking mechanism calibrated to a safe descent speed regardless of user weight within the rated range.

It is not a replacement for a rescue team response — it is a life-safety option for situations where conventional rescue cannot reach in time. Furthermore, it requires pre-deployment training and inclusion in evacuation drills — a device purchased and stored without a drill programme provides no real safety value.

For rig mast workers, offshore platform personnel, and elevated structure maintenance crews where conventional rescue access would be delayed, the SkySaver Backpack Kit from Fall@rrest Global provides a self-contained, wearable controlled-descent device that allows a single person to evacuate from height without external rescue team assistance — operable without prior climbing or rescue training, with a calibrated descent rate governed by an internal braking mechanism. For platform or rig-wide evacuation planning where multiple workers may need to evacuate from the same elevated position, the SkySaver Evacuation Kit from Fall@rrest Global provides a fixed-installation solution for a defined evacuation point — configured for sequential use by multiple occupants from a single anchor.

• Read detailed deployment and drill guidance for SkySaver evacuation
• Learn more about evacuation drill planning

Rescue Equipment — Staging, Inspection, and Drill Requirements

Staging requirements: Rescue equipment must be staged at the work location before the permit is issued — not in a store, vehicle, or HSE office. For confined space entry: tripod positioned over the entry point, block and winch connected and ready, rescue harness on the standby rescuer. For WAH operations: rescue equipment accessible within the time window created by suspension trauma risk. For high-rise / offshore: SkySaver device deployed at the evacuation point — not stored in a bag.

Inspection requirements: Rescue equipment is subject to the same EN 365 three-tier inspection framework as all height safety PPE — pre-use, periodic (6-monthly), and formal annual examination. Additionally: rescue equipment must be inspected after every rescue or training deployment — not just on the scheduled inspection cycle. LOLER 1998 (industry benchmark) requires thorough examination of rescue lifting equipment — tripods, block and winch systems — at least every 6 months.

Drill requirements: A rescue plan that has never been drilled is not an operational rescue plan — it is a document. ADNOC HSE-MS and OSHAD-SF require documented rescue drills for confined space entry and WAH operations. SkySaver and other evacuation devices must be included in evacuation drill programmes — workers must demonstrate correct deployment before they are assigned to an elevated work position. Furthermore, OPITO governs rescue and emergency response training standards for offshore operations in the MENA region, dictating strict competency requirements for all personnel.

• Read the full Height PPE Inspection Guide
• Read more on Evacuation Drill Planning
• General crane / offshore safety posts on Triune blog

Rescue Equipment Inventory — A Practical Reference Table

Rescue Scenario	Primary Equipment	Supporting Equipment	Standard Reference
Confined space retrieval (non-entry)	Tripod Kit – Fall@rrest Global	30m Block with Winch – Fall@rrest Global	EN 795, ADNOC confined space entry procedure
Confined space retrieval (entry required)	Rescue Harness – Fall@rrest Global	Tripod Kit + 30m Block with Winch	EN 361, ADNOC confined space entry procedure
Suspended worker rescue from height	Wire Fall Arrest Blocks – Fall@rrest Global	Rescue Harness – Fall@rrest Global	EN 360, EN 361, OSHAD-SF TG 11
High-rise self-evacuation (single person)	SkySaver Backpack Kit – Fall@rrest Global	Rescue Harness at base	Manufacturer certification
Platform / offshore multi-person evacuation	SkySaver Evacuation Kit – Fall@rrest Global	Rescue Harness at base	Manufacturer certification

Rescue planning on a UAE oilfield is not a paperwork exercise — it is an operational system that must be in place, correctly equipped, and drilled before work begins. The right tripod staged over the wrong entry point, a rescue harness stored 200 metres from the confined space, or an evacuation device never included in a drill are all failure modes that no standard compliance check will surface until an incident occurs. Equipment selection, staging, inspection, and drill integration are the four elements that turn a rescue plan document into a rescue capability.

Triune supplies the full Fall@rrest Global rescue equipment range — tripod kits, 30m block with winch, wire fall arrest blocks, rescue harnesses, and SkySaver evacuation systems — to oilfield operations across the UAE and MENA. For specification support in building a rescue equipment inventory matched to your rig’s confined space, height, and evacuation scenarios, explore the Fall@rrest Global range or contact Triune’s team.
