Drill Pipe Handling Tool
The movement of the suspended drill pipe is a high-risk area. The Pipe Handling Tool complements the use of tag lines by providing exceptional control of the load and flexibility to the handler in the movement and landing of up to 5⅞ inch pipe.
Provides excellent support in confined space usage.
| S.No | Product Code | Hand Grip Style | Length |

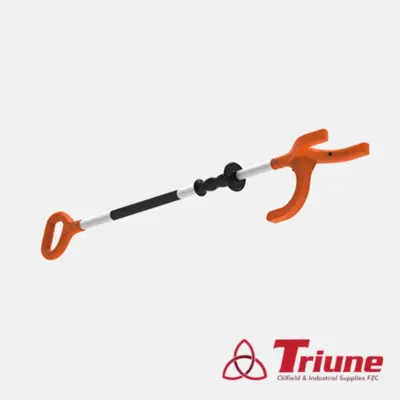

| 1 | DPHT18003 | Closed | 1200mm |
| 2 | DPHT18004 | Closed | 1500mm |

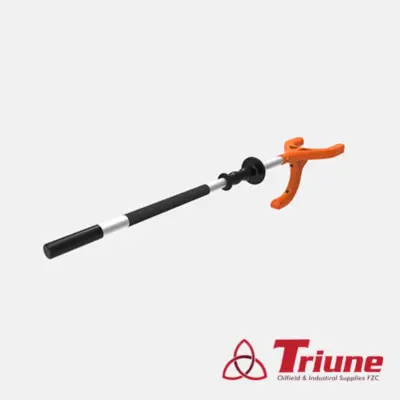

| 3 | DPHT19004 | Open | 1500mm |
- Order With Confidence
- Quality Guaranteed
- Competitive Bulk Pricing
- Consolidated Shipping
- Short Lead Times
- Prompt Response
🔧 DRILL PIPE HANDLING TOOLS | Professional API 7K & 8C Certified Equipment for Safe Drilling Operations
🎯 CORE SPECIFICATIONS
| FEATURE | SPECIFICATION |
| API Compliance | Manufactured to API 7K and API 8C specifications for hoisting equipment |
| Load Capacity Range | 50 to 750 ton capacity for various pipe handling operations |
| Pipe Size Range | Handles tubulars from 2-3/8″ to 42″ diameter with universal compatibility |
| Safety Standards | Advanced safety mechanisms with anti-swing features and operator protection |
| Operating Environment | Land-based and offshore drilling rigs, temperature range -40°F to +300°F |
🔬 ADVANCED ENGINEERING FEATURES
🏗️ ELEVATOR SYSTEMS
Single joint, multi-joint, and pneumatic center latch elevators with patented double-grip bushing systems for handling square, round, and upset tubulars with maximum safety
🔒 MANUAL & POWER SLIPS
High-strength manual slips and pneumatic power slips with rotary bowls are designed for secure pipe gripping without damage or crushing
🔧 POWER TONGS & MANUAL TONGS
Precision manual and power tongs that apply controlled torque to tubular connections without crushing thin-walled pipes or damaging premium connections
🛡️ SAFETY CLAMPS & STABILIZERS
Advanced safety clamps and pipe stabilizing equipment for secure tubular handling, transport, and mousehole operations
📍 STABBING GUIDES & ALIGNERS
Precision stabbing guides and pipe alignment systems for accurate pipe connection and make-up operations
🔗 ELEVATOR LINKS & BAILS
Heavy-duty forged elevator links (bails), beckets, and lifting accessories with API 8C certification for secure hoisting connections
📐 LOAD CLASSIFICATIONS & CAPACITY RATINGS
LIGHT DUTY
50-150 Ton Capacity
STANDARD
150-350 Ton Capacity
HEAVY DUTY
350-750 Ton Capacity
⚡ TECHNICAL DATA SHEET
Safety Features: Anti-swing mechanisms, proper grip orientation, load monitoring, and operator protection systems
Load Testing: Each tool tested to 2x working load limit with certification before delivery
API Compliance: Manufactured according to API Specification 7K and 8C for drilling hoisting equipment
Quality Standards: ISO 9001 quality management systems with full traceability
Operating Range: Suitable for onshore, offshore, and harsh environment drilling operations including H2S service
🚀 OPERATIONAL WORKFLOW
- PIPE LIFTING: Secure attachment and safe hoisting of drill pipe joints from pipe racks to drill floor using certified elevators
- TUBULAR POSITIONING: Precision alignment and positioning for make-up and break-out operations using stabbing guides
- SAFETY SECURING: Proper gripping and stabilization using power slips to prevent pipe movement and ensure operator safety
- TORQUE APPLICATION: Controlled torque application using power tongs without damage to premium tubular connections
🌐 INDUSTRY DEPLOYMENT
🛢️ ROTARY DRILLING OPERATIONS
Essential for safe pipe handling in rotary drilling operations from shallow wells to ultra-deep drilling applications
🔄 WORKOVER & COMPLETION
Critical for well intervention, completion, and production tubing operations including coiled tubing support
🌊 OFFSHORE DRILLING
Marine-grade construction for harsh offshore drilling environments including subsea and deepwater operations
🔧 DIRECTIONAL DRILLING
Specialized handling equipment for directional and horizontal drilling operations with advanced pipe management
📈 PERFORMANCE METRICS
- Operational Safety: Advanced safety features prevent accidents during pipe handling operations with zero tolerance design
- Load Reliability: Tested to exceed API specifications with 2x safety factor and full certification documentation
- Durability: Heat-treated alloy steel construction provides extended service life in harsh drilling environments
- Versatility: Universal compatibility with various pipe sizes, connection types, and drilling rig configurations
- Efficiency: Streamlined operations without interrupting drilling activities, reducing non-productive time
⚠️ Safety & Compliance Standards
- API Specification 7K compliance for rotary drilling equipment and pipe handling systems
- API Specification 8C certification for drilling and production hoisting equipment
- IADC safety protocols for proper pipe handling procedures and operator protection
- Load testing certification at 2x working load limit with documented proof testing
- ISO 9001:2015 quality management system compliance for consistent manufacturing excellence
🔧 Installation & Operation
- Elevator Installation: Pneumatic and manual elevator systems with patented double-grip bushing technology
- Slip Configuration: Proper slip bowl setup for secure pipe gripping without damage to tubular body or connections
- Safety Protocols: Comprehensive training on proper grip orientation and hazard avoidance procedures
- Load Testing: Pre-deployment testing and certification of all handling equipment with documentation
- Maintenance Schedule: Regular inspection, maintenance, and recertification protocols for continued safe operation
🎯 Compatible Equipment
- Drilling Rigs: Land-based and offshore drilling platforms with draw-works and hoisting systems
- Hoisting Systems: Compatible with all standard drilling rig blocks, hooks, and traveling equipment
- Pipe Specifications: Works with API Spec 5DP drill pipes, 5CT casing, and 5B tubing of all grades
- Rotary Equipment: Rotary bushings, master bushings, and rotary table systems for pipe handling
- Power Systems: Hydraulic and pneumatic power units for automated pipe handling operations
🌍 Distributed by Triune General Trading LLC
- Local stock available in the UAE for immediate delivery and emergency drilling requirements
- Fast shipping across GCC & MENA regions with expedited logistics and emergency support
- Technical support and consultation services for tool selection, specifications, and safety compliance
- Competitive pricing for bulk orders and long-term drilling contractor service agreements
- Expert advice on drilling equipment compatibility, safety protocols, and operational efficiency
- 📞 +971 55 198 0856 | 📧 [email protected]
📄 Technical Documentation & Support
Comprehensive technical documentation, load charts, safety manuals, and operational procedures are available for proper tool selection and safe operation. Our technical team provides expert guidance for optimal drilling safety, efficiency, and regulatory compliance.
- API 7K and API 8C Compliance Certification Documentation with Test Reports
- Load Testing Certificates and Safety Factor Verification with Traceability
- Installation Guidelines and Operational Safety Procedures Manual
- Maintenance Schedules, Inspection Protocols, and Recertification Requirements
Available in Saudi Arabia, UAE, Qatar, Kuwait, Oman, Iran, Bahrain, Iraq, Egypt, Libya, Algeria, Tunisia, Morocco, and Sudan through TRIUNE OIL FIELD & INDUSTRIAL SUPPLIES. Some items may not be listed, feel free to inquire for other products related to this brand.
