Drill Pipe Multi Handling Tool

Product Type:
Brand:
Part No: DPMT18023, DPMT18024, DPMT18025
In Stock

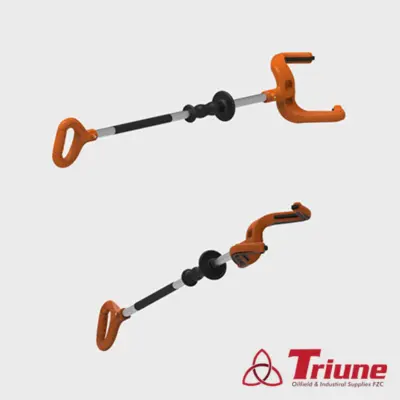

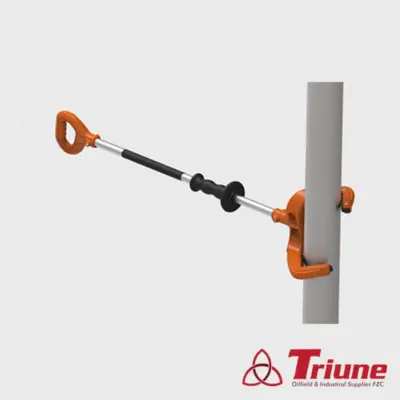

The Drill Pipe Multi Handling Tool provides push/pull control for suspended drill pipes in both vertical and horizontal positions. Designed as a one-size-fits-all solution, it handles pipes from 2⅜” to 6½” without mechanical parts. This ergonomic, multi-functional tool supports hands-free operations on rig floors and catwalks, while also handling drilling/fishing tools and hoses to maintain a safe working distance. A shorter version is available for workshops and manufacturing facilities with limited space.

S.No Product Code Product Name & Length
1 DPMT18023 Drill Pipe Multi-Tool 850mm
2 DPMT18024 Drill Pipe Multi-Tool 1200mm
3 DPMT18025 Drill Pipe Multi-Tool 1500mm



Get Quote Now
Send Enquiry On
Whatsapp
  • Order With Confidence
  • Quality Guaranteed
  • Competitive Bulk Pricing
  • Consolidated Shipping
  • Short Lead Times
  • Prompt Response

🔧 DRILL PIPE MULTI HANDLING TOOL | Professional Hands-Free Drilling Solution

REVOLUTIONARY HANDS-FREE INNOVATION: The Drill Pipe Multi Handling Tool represents a unique design and ergonomic handling solution that can accommodate drill pipe from 2⅜” to 6½” with no mechanical parts. This multi-functional tool is a vital component in implementing a Hands-Free working environment on both rig floor and catwalk areas, manufactured to assist in handling, positioning, and placement of drill pipes through push and pull action.

🎯 CORE SPECIFICATIONS

FEATURE SPECIFICATION
Pipe Diameter Range 2⅜” to 6½” accommodation capacity
Mechanical Components No mechanical parts – simple and reliable design
Shaft Construction Robust industrial-grade aluminium shaft
Handle Configuration Dual handling points – end and middle positions
Operation Method Push and pull action for precise control
Working Environment Rig floor and catwalk area operations

🔬 ADVANCED DESIGN FEATURES

🎯 UNIQUE ERGONOMIC DESIGN

Specially engineered for comfortable handling with intelligent design that increases operation speed significantly

🔧 NO MECHANICAL PARTS

Simple, reliable operation without complex mechanisms – reduces maintenance and failure points

⚡ MULTI-FUNCTIONAL CAPABILITY

Handles positioning, manoeuvring, and placement operations for comprehensive pipe management

🔄 PUSH-PULL ACTION

Precise control through push and pull movements for accurate pipe positioning

💪 ALUMINUM CONSTRUCTION

Industrial-grade aluminium shaft provides strength while maintaining lightweight handling

🛡️ HANDS-FREE SAFETY

Creates a safe buffer zone between the operator and the suspended pipe for injury prevention

📐 DRILLING OPERATION SOLUTIONS

RIG FLOOR

Primary drilling operations and pipe handling

CATWALK

Pipe preparation and staging operations

HANDLING

Precise positioning and movement control

⚡ TECHNICAL SPECIFICATIONS

Pipe Compatibility:
2⅜” to 6½” drill pipe diameter range
Construction Material:
Industrial-grade aluminum shaft with enhanced durability
Handle Design:
Dual handling points for optimal control and leverage
Operation Type:
Push and pull action for precise pipe manipulation
Mechanical Parts:
Zero mechanical components for reliability
Safety Category:
Hands-free safety equipment with buffer zone protection

🚀 OPERATIONAL APPLICATIONS

  1. DRILL PIPE POSITIONING: Precise placement and alignment of suspended drill pipe during drilling operations
  2. PIPE MANEUVERING: Safe movement and repositioning of pipes in both vertical and horizontal orientations
  3. LANDING OPERATIONS: Controlled guidance during pipe landing and connection procedures
  4. CATWALK HANDLING: Efficient pipe preparation and staging in catwalk areas

🌐 INDUSTRY DEPLOYMENT

🛢️ OFFSHORE DRILLING

Platform drilling operations, jackup rigs, and semi-submersible drilling units

🏗️ ONSHORE DRILLING

Land drilling rigs, shale drilling operations, and conventional drilling activities

🔧 WORKOVER OPERATIONS

Well maintenance, completion activities, and intervention services

📈 PERFORMANCE BENEFITS

  • Enhanced Safety: Creates a buffer zone between operators and suspended pipes, reducing injury risk
  • Operational Efficiency: Ergonomic design increases operational speed and reduces fatigue
  • Versatile Application: Accommodates a wide range of drill pipe diameters without adjustments
  • Simple Operation: No mechanical parts means easy operation and minimal maintenance
  • Precise Control: Push-pull action provides accurate positioning and movement control

⚠️ Safety & Usage Guidelines

  • PPE Requirements: Always wear correct personal protective equipment when using hands-free tools
  • Proper Engagement: Only engage when the drill pipe is positioned at the appropriate working level
  • Weight Limitations: Ensure tool capacity matches suspended pipe weight and diameter
  • Team Coordination: Maintain clear communication with crane operators and other personnel
  • Inspection Protocol: Regular inspection of the aluminium shaft and handling points for wear or damage

🔧 Installation & Operation

  • Simple Deployment: Easy engagement with suspended drill pipe through tool opening
  • Dual Handle Design: Two handling points provide optimal control and leverage options
  • Push-Pull Action: Smooth movement control for precise pipe positioning
  • No Setup Required: Ready-to-use design with no mechanical adjustments needed
  • Maintenance-Free: Aluminium construction requires minimal maintenance and upkeep

🎯 Compatible Drill Pipe Specifications

  • Standard Drill Pipe: 2⅜”, 2⅞”, 3½”, 4″, 4½”, 5″, 5½”, 6½” diameters
  • Heavy Weight Drill Pipe: Compatible with HWDP in the specified diameter range
  • Drill Collars: Suitable for smaller diameter drill collar handling
  • Casing Pipe: Limited casing handling applications within the diameter range
  • Speciality Tubulars: Various speciality drilling tubulars and tools

📊 PERFORMANCE SPECIFICATIONS

PARAMETER SPECIFICATION BENEFIT
Diameter Range 2⅜” to 6½” Wide compatibility range
Construction Aluminum shaft Lightweight yet durable
Operation Push-pull action Precise control and positioning

🌍 Distributed by Triune General Trading LLC

  • Drilling Equipment Expertise: Leading supplier of offshore handling systems and drilling safety equipment
  • Immediate Availability: Local stock in UAE for fast delivery across the region
  • Technical Consultation: Expert guidance on hands-free safety program implementation
  • Quality Assurance: All products meet international drilling industry safety standards
  • Training Support: Comprehensive training programs for proper tool usage and safety protocols
  • Contact Information: 📞 +971 55 198 0856 | 📧 [email protected]

📄 Technical Documentation & Support

Comprehensive technical documentation, safety procedures, and training materials are available for the proper implementation of the multi-handling tool for drill pipe. Our technical team provides expert guidance for optimal hands-free drilling operation development and safety compliance.

  • ✅ Product Specification Sheets and Operating Procedures
  • ✅ Hands-Free Safety Program Implementation Guidelines
  • ✅ Drilling Operations Safety Protocols and Best Practices
  • ✅ Quality Certification and Compliance Documentation

Available throughout GCC & MENA regions including Saudi Arabia, UAE, Qatar, Kuwait, Oman, Iran, Bahrain, Iraq, Egypt, Libya, Algeria, Tunisia, Morocco, and Sudan through TRIUNE OIL FIELD & INDUSTRIAL SUPPLIES. Contact us for complete drilling safety solutions and hands-free equipment expertise.
