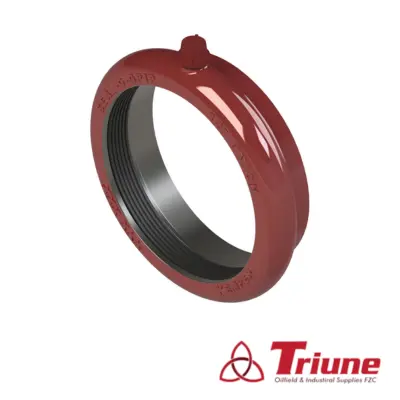

Seal O Grip Tube, Seal O Grip Union Assy
| P1080T | 10″ Seal O Grip Tube |
| P1280T | 12″ Seal O Grip Tube |
| P680T | 6″ Seal O Grip Tube |
| P880 | 8″ Seal O Grip Union Assy |
| P880T | 8″ Seal O Grip Tube |
| P1080 | 10″ Seal O Grip Union Assy |
| P1280 | 12″ Seal O Grip Union Assy |
| P1680 | 16″ Seal O Grip Union Assy |
| P680 | 6″ Seal O Grip Union Assy |
- Order With Confidence
- Quality Guaranteed
- Competitive Bulk Pricing
- Consolidated Shipping
- Short Lead Times
- Prompt Response
⚙️ SEAL-O-GRIP TUBE SEAL UNION ASSEMBLY | Professional Drilling Fluid Connection Solution
CRITICAL FLUID TRANSFER COMPONENT: The Seal-O-Grip Tube Seal Union Assembly serves as the essential leak-proof connection system for drilling fluid circulation between mud tanks, pumps, and drilling equipment. This precision-engineered union assembly ensures secure, reliable connections in high-pressure drilling fluid systems while maintaining operational integrity and preventing costly fluid losses during drilling operations.
🎯 CORE SPECIFICATIONS
| FEATURE | SPECIFICATION |
| Connection Type | Seal-O-Grip tube-to-tube union assembly system |
| Pressure Rating | Up to 7,500 PSI working pressure capacity |
| Size Range | Available in 1/4″ to 2″ tube OD configurations |
| API Compliance | Manufactured to API 16C and API 53 standards |
| Material Grade | AISI 4140/4130 alloy steel with corrosion-resistant coating |
🔬 ADVANCED ENGINEERING FEATURES
🔒 LEAK-PROOF SEAL SYSTEM
Advanced O-ring sealing technology prevents fluid leakage under pressure
⚡ QUICK CONNECT DESIGN
Rapid assembly and disassembly for efficient maintenance operations
💪 HIGH-PRESSURE CAPABILITY
Engineered for demanding drilling fluid circulation applications
🔧 UNIVERSAL COMPATIBILITY
Compatible with standard drilling fluid circulation systems
🛡️ CORROSION RESISTANCE
Specialized coating for extended service in harsh drilling environments
⚙️ PRECISION MACHINED
CNC machined components ensure perfect fit and reliable performance
📐 SIZE CONFIGURATIONS & APPLICATIONS
1/4″ – 1/2″
Instrument & Control Lines
3/4″ – 1″
Mud Circulation Systems
1-1/4″ – 2″
High-Volume Fluid Transfer
⚡ TECHNICAL DATA SHEET
Seal Type: O-ring seal system with backup rings
Connection: Seal-O-Grip tube end connections
Pressure Rating: Up to 7,500 PSI working pressure
Temperature Range: -20°F to +180°F (-29°C to +82°C)
API Standards: API 16C and API 53 compliant
🚀 OPERATIONAL WORKFLOW
- MUD TANK CONNECTIONS: Secure fluid transfer between active and reserve mud tanks
- PUMP SUCTION LINES: Reliable connections for mud pump suction manifolds
- CIRCULATION SYSTEMS: Essential for drilling fluid circulation and conditioning
- MAINTENANCE ACCESS: Quick disconnect capability for system maintenance
🌐 INDUSTRY DEPLOYMENT
🛢️ DRILLING OPERATIONS
Critical for mud circulation in rotary drilling systems
🏭 MUD TANK SYSTEMS
Essential connections for drilling fluid storage and transfer
⚙️ PUMP MANIFOLDS
Reliable connections for mud pump suction and discharge systems
📈 PERFORMANCE METRICS
- Leak Prevention: Zero-leakage performance under rated pressure conditions
- Flow Efficiency: Minimal pressure drop through union assembly
- Maintenance Time: 75% reduction in connection/disconnection time
- Service Life: Extended operational life in abrasive drilling fluid environments
- Cost Savings: Prevents costly fluid losses and environmental incidents
⚠️ Safety & Compliance Standards
- API 16C specification compliance for drilling equipment connections
- API 53 blowout preventer equipment standards
- ISO 9001:2015, ISO 14001:2015, ISO 45001:2018 manufacturing standards
- NACE MR0175/ISO 15156 sour service compliance available
- Meets international drilling fluid system safety requirements
🔧 Installation & Operation
- Quick Assembly: Tool-free connection and disconnection capability
- Pressure Testing: Each assembly pressure tested to 1.5x working pressure
- Seal Replacement: Field-replaceable O-ring seals for maintenance
- Visual Inspection: Clear sight lines for seal condition monitoring
- Safety Lockout: Positive engagement indicators for operational safety
🎯 Compatible Systems
- Mud Tanks: Active, reserve, and mixing tank connections
- Mud Pumps: Triplex and duplex pump suction manifolds
- Shale Shakers: Fluid return and overflow systems
- Centrifuges: Drilling fluid conditioning equipment
- Degassers: Vacuum degassing system connections
🌍 Distributed by Triune General Trading LLC
- Local stock available in UAE for immediate delivery
- Fast shipping across GCC & MENA regions
- Technical support and application engineering services
- Competitive pricing for drilling contractors and service companies
- Comprehensive inventory of drilling fluid system components
- 📞 +971 55 198 0856 | 📧 [email protected]
📄 Technical Documentation & Support
Comprehensive technical documentation, installation procedures, and compatibility information are available for proper union assembly selection and installation. Our technical team provides expert guidance for optimal system integration and performance optimization.
- Technical Data Sheets and Dimensional Drawings Available
- Installation Procedures and Torque Specifications
- Pressure Testing Protocols and Certification
- API Compliance Documentation and Certificates
- Material Traceability and Quality Assurance Records
Available in Saudi Arabia, UAE, Qatar, Kuwait, Oman, Iran, Bahrain, Iraq, Egypt, Libya, Algeria, Tunisia, Morocco, and Sudan through TRIUNE OIL FIELD & INDUSTRIAL SUPPLIES. Some items may not be listed, feel free to inquire for other products related to this brand.
