Slip Dies

🔧 Professional Slip Dies

High-Performance Gripping Inserts for Drilling Operations

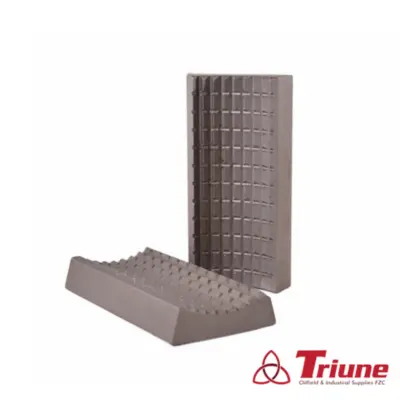

Slip dies are essential replaceable steel inserts designed to provide secure gripping of tubular goods in drilling operations. These hardened steel components feature serrated teeth arranged in a circular pattern, creating a firm grip on drill pipes, casing, and drill collars. The dies are inserted into slips and are crucial for maintaining the integrity of drilling equipment during pipe handling operations.

🏭 Technical Overview

Slip dies consist of a set of jaws or teeth that are arranged in a circular pattern. They are typically made from hardened steel or alloy materials to withstand the high pressures and loads encountered in oilfield operations. On the inside surface, the slips have replaceable steel teeth that grip the pipe.

📋 Technical Specifications

🔩 Construction Details

• Material: High-grade alloy steel construction
• Surface Treatment: Case-hardened for maximum wear resistance
• Core Design: Ductile inner core for shock absorption
• Pattern: Serrated teeth in circular arrangement
• Compatibility: API standard slip bowls

📦 Available Part Numbers

• 2164-54: Slip Die Insert (Standard Series)
• 10162B: Slip Insert (Heavy-Duty Series)
• 2167B: Slip Insert (Premium Series)
• 2163: Slip Insert (Universal Series)

⚙️ Performance Features

• Gripping Action: Serrated inserts or dies that will grip the outside diameter of the tubular
• Load Distribution: Even pressure distribution across pipe surface
• Wear Resistance: Hardened surface for extended service life
• Impact Absorption: Ductile core handles sudden shock loads
• Precision Machined: Manufactured to strict quality control standards

🎯 Types & Applications

🛢️ Drill Pipe Slip Dies

• Size Range: Handle drill pipes from 2 3/8 to 7 in (60.3 to 177.8mm)
• Classification: Available as Short (SDS), Medium (SDML), Extra Long (SDXL)
• Application: Standard drilling operations and pipe handling
• Features: Optimized tooth pattern for drill pipe gripping

🔧 Drill Collar Slip Dies

• Purpose: Specifically designed to grip and hold drill collars, which are heavy, thick-walled tubular components
• Construction: Feature rugged teeth that provide a secure hold on the drill collars
• Application: Heavy-duty drilling operations
• Design: Reinforced construction for high-load applications

🏗️ Casing Slip Dies

• Function: Used to grip and support the casing, which is a large-diameter pipe inserted into the wellbore
• Size Range: Handle casing sizes from 5 inches to 30 inches in outer diameter (OD)
• Versatility: Can handle various sizes by dressing the slip with the appropriate insert size
• Compliance: Comply with the API-7K specification

🔧 Key Features & Benefits

💪 Superior Performance

• Wear Resistance: Case-hardened surface provides excellent gripping performance
• Durability: Help to prevent damage to the tubing, drill pipe, and casings
• Longevity: Contribute to the longevity of the equipment
• Reliability: Consistent gripping performance throughout service life

⚙️ Design Excellence

• Precision Manufacturing: Manufactured to meet and exceed API standards
• Quality Control: Strict quality control procedures ensure consistent performance
• Custom Options: Custom and OEM designs available
• Compatibility: Compatible with Varco handling tools

🛡️ Safety Features

• Secure Gripping: Prevents slippage during pipe handling operations
• Equipment Protection: Help to prevent damage to the tubing, drill pipe, and casings, which can be costly to repair or replace
• Operational Safety: Reliable performance reduces risk of equipment failure
• Load Management: Even load distribution prevents stress concentration

🏗️ Industry Applications

🛢️ Drilling Operations

• Rotary drilling rigs
• Offshore drilling platforms
• Land-based drilling operations
• Workover and completion operations

⚙️ Equipment Integration

• Manual slip systems
• Power slip assemblies
• Rotary table installations
• Spider and elevator systems

🔧 Operational Uses

• Pipe tripping operations
• Casing running procedures
• Drill collar handling
• Tubular goods support

📊 Installation & Maintenance

🔧 Installation Guidelines

1. Select appropriate die size for tubular diameter
2. Install dies in slip assembly following API procedures
3. Ensure proper seating and alignment
4. Verify gripping surface condition before use
5. Test grip security before applying full load

🛠️ Maintenance Requirements

• Regular inspection of tooth condition
• Replacement when wear limits are reached
• Proper storage to prevent corrosion
• Cleaning after exposure to drilling fluids
• Documentation of service history

🎯 Quality Assurance

📋 Manufacturing Standards

• API specification compliance
• Quality control testing procedures
• Material certification available
• Traceability documentation
• Performance verification testing

🔬 Material Properties

• High-grade alloy steel construction
• Case-hardened surface treatment
• Controlled hardness depth
• Impact-resistant core design
• Corrosion-resistant finish options

🌍 Distributed by Triune General Trading LLC

• Local stock in UAE
• Fast shipping across GCC & MENA
• Technical support available
• Volume pricing for bulk orders
• Custom sizing and specifications
• 📞 +971 55 198 0856 | 📧 [email protected]

📄 Technical Support

Our technical team provides comprehensive support including:

• Die selection guidance
• Compatibility verification
• Maintenance recommendations
• Custom design consultation

Available in Saudi Arabia, UAE, Qatar, Kuwait, Oman, Iran, Bahrain, Iraq, Egypt, Libya, Algeria, Tunisia, Morocco, and Sudan through TRIUNE OIL FIELD & INDUSTRIAL SUPPLIES. Some items may not be listed, feel free to inquire for other products related to this brand.
