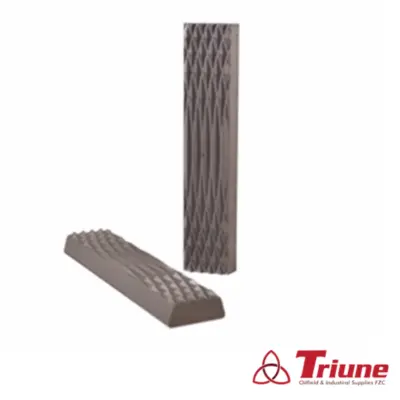

🔧 Tong Dies – Blue Diamond & Pyramid

High-Performance Gripping Inserts for Manual & Power Tongs

Tong dies are essential replaceable steel inserts designed for Manual Tongs, Power Tongs, and Iron Roughneck equipment. These precision-engineered components perform the critical job of gripping tool joints before torque application. Available in Blue Diamond and Pyramid tooth configurations, these dies provide exceptional gripping power and durability for demanding drilling operations.

🏭 Technical Overview

Tong dies are principal elements in tong systems, featuring hardened steel construction with specialized tooth patterns. The Blue Diamond configuration offers superior gripping on smooth surfaces, while Pyramid teeth provide excellent penetration and holding power on various pipe finishes. Both designs are manufactured from high-grade alloy steel with case-hardened surfaces for maximum wear resistance.

📋 Technical Specifications

🔩 Construction Details

• Material: High-grade alloy steel construction
• Surface Treatment: Case-hardened to required depth
• Core Design: Ductile inner core for shock absorption
• Tooth Patterns: Blue Diamond and Pyramid configurations
• Compliance: API 7K standard specification

📦 Standard Dimensions

• 1/2″ x 1-1/4″ x 5″ – Standard Manual Tong Dies
• 1/2″ x 1-1/4″ x 5-7/8″ – Extended Manual Tong Dies
• 7/16″ x 1-1/4″ x 3-1/16″ – Power Tong Dies
• 1-3/16″ x 1-1/4″ x 3-1/2″ – Heavy-Duty Power Tong Dies

⚙️ Performance Features

• Gripping Force: Optimized tooth geometry for maximum grip
• Wear Resistance: Hardened surface highly resistant to wear
• Impact Absorption: Ductile core absorbs shock and heavy torque
• Precision Machined: Manufactured to strict tolerance standards
• Interchangeability: Compatible with Varco and other major brands

🎯 Tooth Pattern Types

💎 Blue Diamond Configuration

• Design: Diamond-shaped teeth with sharp cutting edges
• Application: Excellent for smooth and hard surfaces
• Penetration: Superior bite into tool joint surfaces
• Holding Power: Exceptional grip retention under high torque
• Compatibility: Standard manual and power tong applications

🔺 Pyramid Configuration

• Design: Pyramid-shaped teeth with angular cutting surfaces
• Application: Versatile performance on various pipe finishes
• Penetration: Deep bite into softer materials
• Distribution: Even load distribution across contact area
• Durability: Long-lasting performance in demanding conditions

🔧 API 7K Part Numbers & Interchangeability

📊 1/2″ x 1-1/4″ x 5″ Series

• Blue Diamond: 16401-6 (MT-1610-B)
• Pyramid: 16401-2 (MT-1610-P)
• Coarse: 16401-1 (5551-C)
• Plain: 16401 (5551-PL)

📊 1/2″ x 1-1/4″ x 5-7/8″ Series

• Blue Diamond: 16402-6 (MT-6559)
• Pyramid: 16402-2 (MT-6559)
• Coarse: 16402-1 (5552-C)
• Plain: 16402 (5552-PL)

🏗️ Equipment Compatibility

🔧 Manual Tongs

• API 7K specification compliance
• Varco manual tong systems
• Conventional makeup tongs
• Breakout tong assemblies

⚙️ Power Tongs

• BJ Drill Pipe Power Tongs
• RUSHI Power Tong ZQ 203-100/125
• TD Tubing Power Tongs (XQ89/3YB, XQ89/3YC)
• XY114/6YB and XQ140/12Y systems

🏭 Iron Roughneck Systems

• Automated pipe handling equipment
• High-torque makeup systems
• Breakout and makeup combinations
• Rig floor automation systems

🎯 Key Features & Benefits

💪 Superior Performance

• Exceptional Gripping: Specialized tooth patterns provide maximum grip
• Wear Resistance: Case-hardened surface extends service life
• Shock Absorption: Ductile core handles sudden impacts
• Torque Management: Efficient heavy torque transmission
• Reliability: Consistent performance in demanding conditions

⚙️ Design Excellence

• Precision Manufacturing: Manufactured to API 7K standards
• Quality Control: Rigorous testing ensures consistent performance
• Interchangeability: Compatible with major tong manufacturers
• Custom Options: OEM and customized dies available
• Material Certification: Full traceability and documentation

🛡️ Operational Safety

• Secure Gripping: Prevents slippage during makeup/breakout
• Equipment Protection: Minimizes damage to expensive tubulars
• Consistent Performance: Reliable operation reduces safety risks
• Load Distribution: Even stress distribution prevents failure

🏗️ Industry Applications

🛢️ Drilling Operations

• Rotary drilling rigs
• Offshore drilling platforms
• Land-based drilling operations
• Workover and completion operations

⚙️ Pipe Handling

• Drill pipe makeup and breakout
• Casing running operations
• Tubing handling procedures
• Tool joint connections

🔧 Equipment Integration

• Manual tong systems
• Power tong assemblies
• Iron roughneck operations
• Automated pipe handling

📊 Installation & Maintenance

🔧 Installation Guidelines

1. Select appropriate die type for application
2. Install dies in tong jaw assemblies
3. Ensure proper seating and alignment
4. Verify tooth engagement with pipe surface
5. Test gripping action before full operation

🛠️ Maintenance Requirements

• Regular inspection of tooth condition
• Replacement when wear limits reached
• Proper cleaning after use
• Storage in dry conditions
• Documentation of service history

🎯 Quality Assurance

📋 Manufacturing Standards

• API 7K specification compliance
• ISO quality management systems
• Material certification available
• Dimensional accuracy verification
• Performance testing procedures

🔬 Material Properties

• High-grade alloy steel construction
• Controlled case-hardening process
• Specified hardness requirements
• Impact resistance testing
• Corrosion resistance treatment

🌍 Distributed by Triune General Trading LLC

• Local stock in UAE
• Fast shipping across GCC & MENA
• Technical support available
• Volume pricing for bulk orders
• Custom specifications available
• 📞 +971 55 198 0856 | 📧 [email protected]

📄 Technical Support

Our technical team provides comprehensive support, including:

• Die selection guidance
• Compatibility verification
• Maintenance recommendations
• Custom design consultation
• API compliance documentation

Available in Saudi Arabia, UAE, Qatar, Kuwait, Oman, Iran, Bahrain, Iraq, Egypt, Libya, Algeria, Tunisia, Morocco, and Sudan through TRIUNE OIL FIELD & INDUSTRIAL SUPPLIES. Some items may not be listed; feel free to inquire about other products related to this brand.
