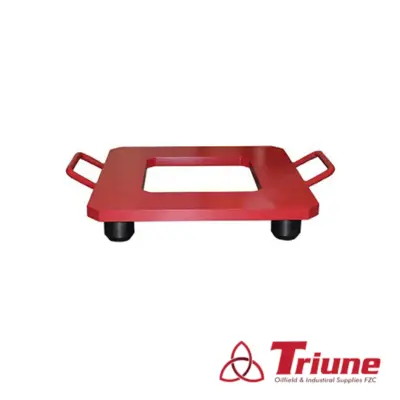

Bit Breaker Adapter Plate
The adapter plate is used to adapt the Bit Breakers to lock the bit Breaker for breakup & Makeup of Bits from drilling Strings. Suitable for Pin Drive Master Bushing
- Order With Confidence
- Quality Guaranteed
- Competitive Bulk Pricing
- Consolidated Shipping
- Short Lead Times
- Prompt Response
⚙️ BIT BREAKER ADAPTER PLATE | Professional Master Bushing Interface Solution
CRITICAL DRILLING COMPONENT: The Bit Breaker Adapter Plate serves as the essential interface between bit breakers and master bushings during drilling operations. This precision-engineered adapter plate enables secure positioning and locking of bit breakers for safe makeup and breakout of drill bits from drilling strings, ensuring efficient and safe drilling operations.
🎯 CORE SPECIFICATIONS
| FEATURE | SPECIFICATION |
| Master Bushing Interface | Designed specifically for master bushing systems and rotary tables |
| Bit Breaker Compatibility | Enables secure mounting and positioning of the bit breaker |
| Size Options | Available for 17.5″, 27.5″, and 37.5″ master bushing configurations |
| API Compliance | Manufactured to meet API 7K specifications and standards |
| Grade Classification | Built for demanding drilling operations and continuous use |
🔬 ADVANCED ENGINEERING FEATURES
🎯 PRECISION MACHINED DESIGN
Exact fit for master bushing drive pin holes and configurations
⬜ SQUARE DRIVE INTERFACE
Provides 13-9/16 inch square accommodation for bit breakers
💪 HEAVY-DUTY CONSTRUCTION
High-strength steel construction for demanding drilling applications
🔗 PIN DRIVE COMPATIBILITY
Compatible with pin drive master bushings (MPCH, MSPC, MDSP)
🔒 SECURE LOCKING SYSTEM
Ensures positive engagement and safe bit breaker operation
🛡️ CORROSION RESISTANCE
Protective coating for extended service life in harsh environments
📐 SIZE CONFIGURATIONS & APPLICATIONS
17.5″
Shallow to Medium Depth Operations
27.5″
Standard Drilling Configurations
37.5″
Heavy-Duty Operations (MPCH)
⚡ TECHNICAL DATA SHEET
Interface: Square drive system for bit breaker accommodation
Mounting: Pin drive system compatible with master bushing configurations
API Compliance: Manufactured to API 7K specifications
Size Range: 17.5″, 27.5″, and 37.5″ master bushing compatibility
Operating Environment:Suitable for onshore and offshore drilling operations
🚀 OPERATIONAL WORKFLOW
- BIT MAKEUP OPERATIONS: Secure bit breaker positioning during bit connection procedures
- BIT BREAKOUT OPERATIONS: Stable platform for bit removal from drilling strings
- MASTER BUSHING INTERFACE: Essential connection between rotary table and bit handling tools
- SAFETY ENHANCEMENT: Provides secure working platform for rig crew operations
🌐 INDUSTRY DEPLOYMENT
🛢️ OIL & GAS DRILLING
Essential for onshore and offshore drilling operations
🔄 ROTARY DRILLING RIGS
Compatible with standard rotary table configurations
🔧 WORKOVER OPERATIONS
Critical for well maintenance and completion activities
📈 PERFORMANCE METRICS
- Operational Efficiency: Streamlines bit makeup and breakout procedures
- Safety Enhancement: Provides secure platform for bit handling operations
- Time Savings: Reduces bit change time and operational downtime
- Precision Positioning: Ensures accurate bit breaker placement and engagement
- Cost Effectiveness: Prevents equipment damage and reduces maintenance costs
⚠️ Safety & Compliance Standards
- API 7K Specification compliance for drilling equipment standards
- ISO 9001:2008, ISO 14000:2004, GB/T28001-2011 manufacturing standards
- Reduces risk of accidents during bit handling operations
- Meets international drilling equipment safety requirements
- Enhances overall rig floor safety protocols and procedures
🔧 Installation & Operation
- Master Bushing Integration: Installs directly into master bushing drive pin holes
- Bit Breaker Mounting: Provides secure platform for bit breaker positioning
- Quick Setup: Rapid installation and removal for efficient operations
- Positive Engagement: Secure locking mechanism ensures safe operation
- Maintenance Access: Design allows easy inspection and maintenance
🎯 Compatible Equipment
- Master Bushings: MPCH, MSPC, MDSP configurations
- Rotary Tables: 17.5″, 27.5″, and 37.5″ sizes
- Bit Breakers: Tricone and PDC bit breaker systems
- Drilling Rigs: Land and offshore drilling platforms
- Workover Rigs: Well service and completion equipment
🌍 Distributed by Triune General Trading LLC
- Local stock available in UAE for immediate delivery
- Fast shipping across GCC & MENA regions
- Technical support and consultation services available
- Competitive pricing for bulk orders and drilling contractors
- Expert advice on drilling equipment and compatibility solutions
- 📞 +971 55 198 0856 | 📧 [email protected]
📄 Technical Documentation & Support
Comprehensive technical documentation, installation guidelines, and compatibility charts are available for proper adapter plate selection and installation. Our technical team provides expert guidance for optimal equipment matching and performance.
- Technical Data Sheet and Dimensional Drawings Available
- Installation Guidelines and Procedures
- Compatibility Charts for Master Bushing Systems
- API 7K Compliance Certification Documentation
Available in Saudi Arabia, UAE, Qatar, Kuwait, Oman, Iran, Bahrain, Iraq, Egypt, Libya, Algeria, Tunisia, Morocco, and Sudan through TRIUNE OIL FIELD & INDUSTRIAL SUPPLIES. Some items may not be listed, feel free to inquire for other products related to this brand.
