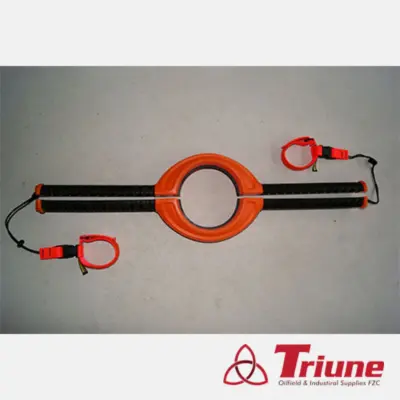

Drill Pipe Connection Guide

Name: Drill Pipe Connection Guide
Brand: Triune
SKU: 2408
Rating: 5 (1 reviews)

Product Type: RIG Tools

Part No: DPCG18009, DPCG18010, DPCG18011, DPCG18012, DPCG18013, DPCG18014, DPCG18015, DPCG18016

In Stock

This patented tool eliminates the need for hand-to-pipe contact, offering precision and control while keeping hands away from pinch points. It improves driller visibility to reduce thread damage and features a rubber seal for wiping drilling fluids when pulling out of the hole. Used with PPE, it also minimizes exposure to harmful fluids.

S.No	Product Code	Drill Pipe Diameter
1	DPCG18009	5 7/8″ inch
2	DPCG18010	5 1/2″ inch
3	DPCG18011	5″ inch
4	DPCG18012	4 1/2″ inch
5	DPCG18013	4″ inch
6	DPCG18014	3 1/2″ inch
7	DPCG18015	3″ inch
8	DPCG18016	2 3/8″ inch

🔧 DRILL PIPE CONNECTION GUIDE | Patented Safety Tool for Hands-Free Pipe Connections

PATENTED SAFETY INNOVATION: Revolutionary drill pipe connection guide featuring a patented design that eliminates hand-to-pipe contact during connection operations. Provides precision control while maintaining operator safety, with an integrated rubber seal for drilling fluid wipe-down during tripping operations. Available in 8 sizes to fit all standard drill pipe diameters.

🎯 AVAILABLE SIZES & SPECIFICATIONS

PART NUMBER	DRILL PIPE DIAMETER	APPLICATION
DPCG18009	5⅞” inch	Heavy Duty Operations
DPCG18010	5½” inch	Standard Operations
DPCG18011	5″ inch	Standard Operations
DPCG18012	4½” inch	Medium Duty Operations
DPCG18013	4″ inch	Medium Duty Operations
DPCG18014	3½” inch	Light Operations
DPCG18015	3″ inch	Light Operations
DPCG18016	2⅜” inch	Small Diameter Operations

🔬 PATENTED DESIGN FEATURES

🛡️ HANDS-FREE OPERATION

Eliminates hand-to-pipe contact while maintaining precision control during connections

👁️ ENHANCED VISIBILITY

Provides the driller with a better overall vision of the connection, reducing thread damage risk

🔧 INTEGRATED WIPER SEAL

Inner radius rubber seal wipes drilling fluid during pipe withdrawal operations

🧤 REDUCED EXPOSURE

Minimizes handler exposure to harmful drilling fluids when used with proper PPE

🚀 OPERATIONAL BENEFITS

Connection Safety: Eliminates pinch point hazards during pipe connections
Thread Protection: Prevents costly thread damage through improved visibility
Fluid Management: Built-in wiper for drilling fluid control during tripping
Precision Control: Maintains accuracy without direct hand contact
Universal Application: Complete size range for all standard drill pipes

⚠️ SAFETY ADVANTAGES

Keep hands clear of potential crush and pinch points
Reduces the risk of finger and hand injuries during connections
Minimizes exposure to hazardous drilling fluids
Improves the overall connection process safety
Patented design ensures reliable performance

🎯 APPLICATIONS

Drill Pipe Connections: Primary tool for safe pipe joining operations
Tripping Operations: Fluid wiping during pipe withdrawal
Thread Protection: Prevents cross-threading and damage
Drilling Operations: Essential safety tool for all drilling activities

🔧 TECHNICAL SPECIFICATIONS

Size Range: 2⅜” to 5⅞” drill pipe diameter coverage
Construction: Durable materials for demanding rig environments
Seal Material: High-quality rubber for effective fluid wiping
Design: Patented configuration for optimal safety and performance

🌍 Available Through Triune General Trading LLC

Complete size range available from UAE stock
Fast delivery across GCC & MENA regions
Technical support for proper size selection
Competitive pricing for complete sets
Expert guidance on drilling safety equipment
📞 +971 55 198 0856 | 📧 sales@triuneme.com

Available in Saudi Arabia, UAE, Qatar, Kuwait, Oman, Bahrain, Iraq, Egypt, Libya, Algeria, Tunisia, Morocco, and Sudan through TRIUNE OIL FIELD & INDUSTRIAL SUPPLIES. Some items may not be listed, feel free to inquire for other products related to this brand.
